FRP Molded Grating
Premium molded fiberglass gratings engineered for industrial strength, corrosion resistance, and safety. Perfect for platforms, walkways, and heavy-duty applications.
Resin Options
Choose from multiple resin systems optimized for specific applications and environments
Polyester Resin
Most economical option with good chemical resistance and mechanical properties. Ideal for general industrial applications.
- Cost-effective solution
- Good chemical resistance
- Temperature range: -40°C to 80°C
Vinyl Ester Resin
Superior chemical resistance and durability. Perfect for harsh chemical environments and marine applications.
- Excellent chemical resistance
- Higher strength & toughness
- Temperature range: -40°C to 120°C

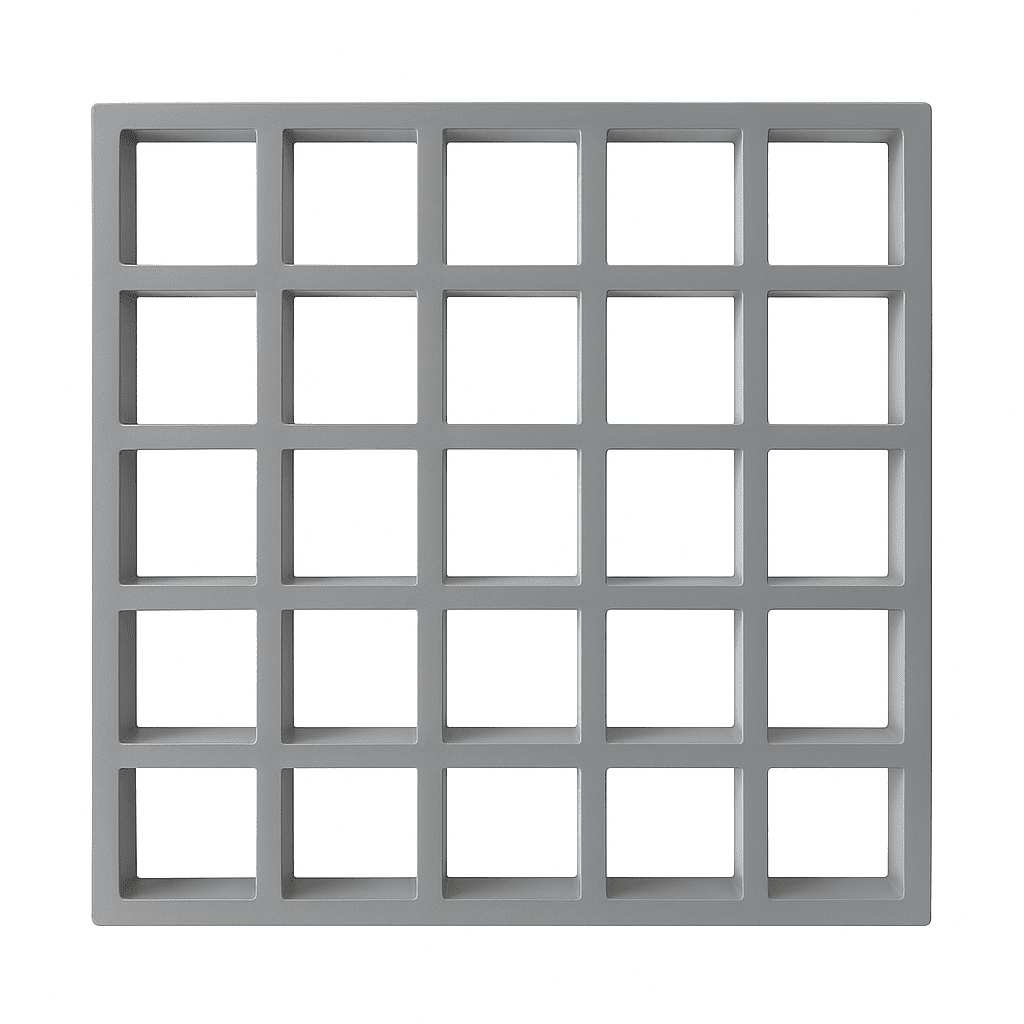

Phenolic Resin
Fire-retardant properties with low smoke emission. Essential for offshore platforms and fire-critical environments.
- Fire retardant properties
- Low smoke emission
- Temperature range: -40°C to 150°C
Surface Forms
Multiple surface options for enhanced safety, aesthetics, and specific application requirements

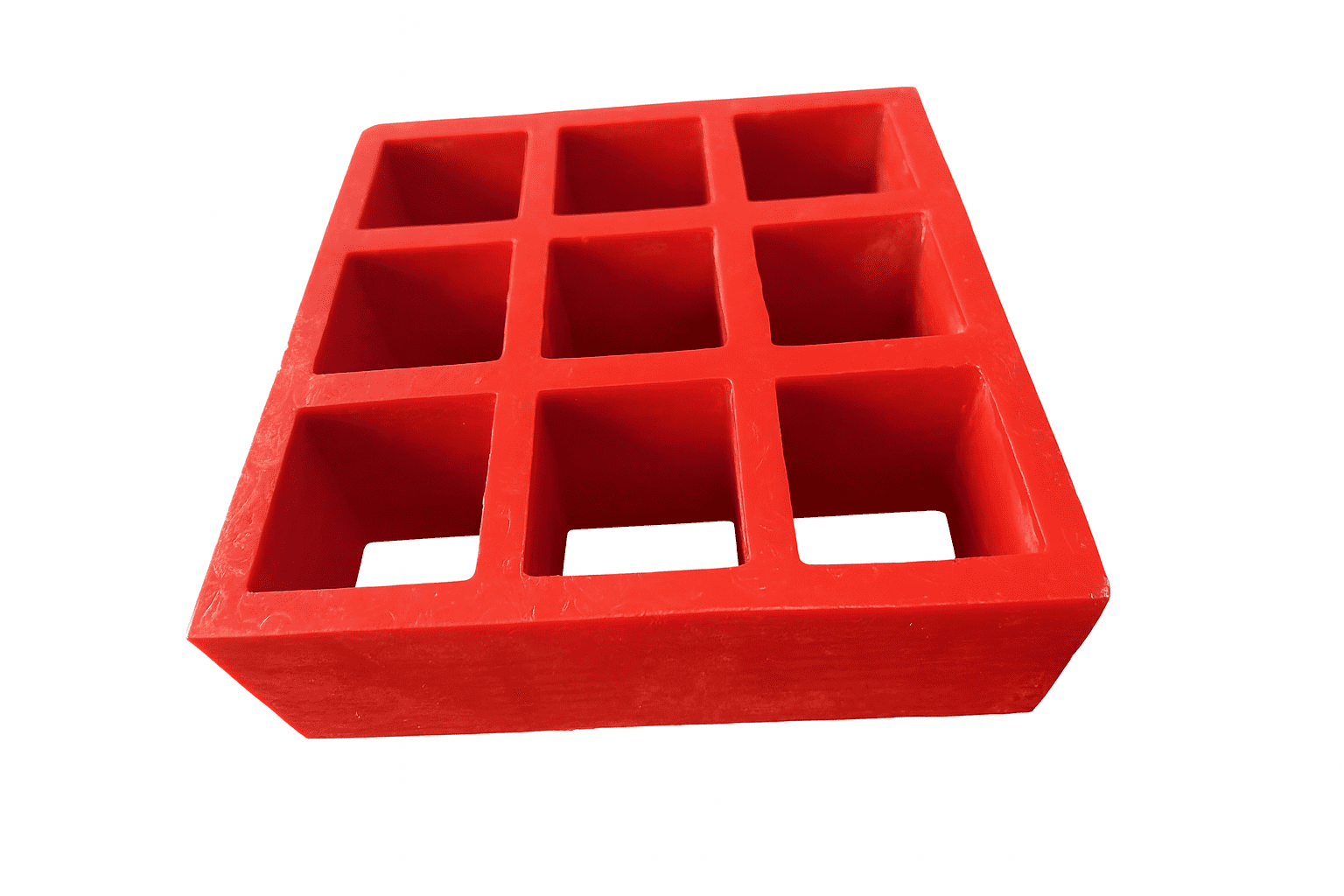

Concave Surface
Anti-slip surface with excellent drainage properties for wet environments. Perfect for marine applications and outdoor walkways.

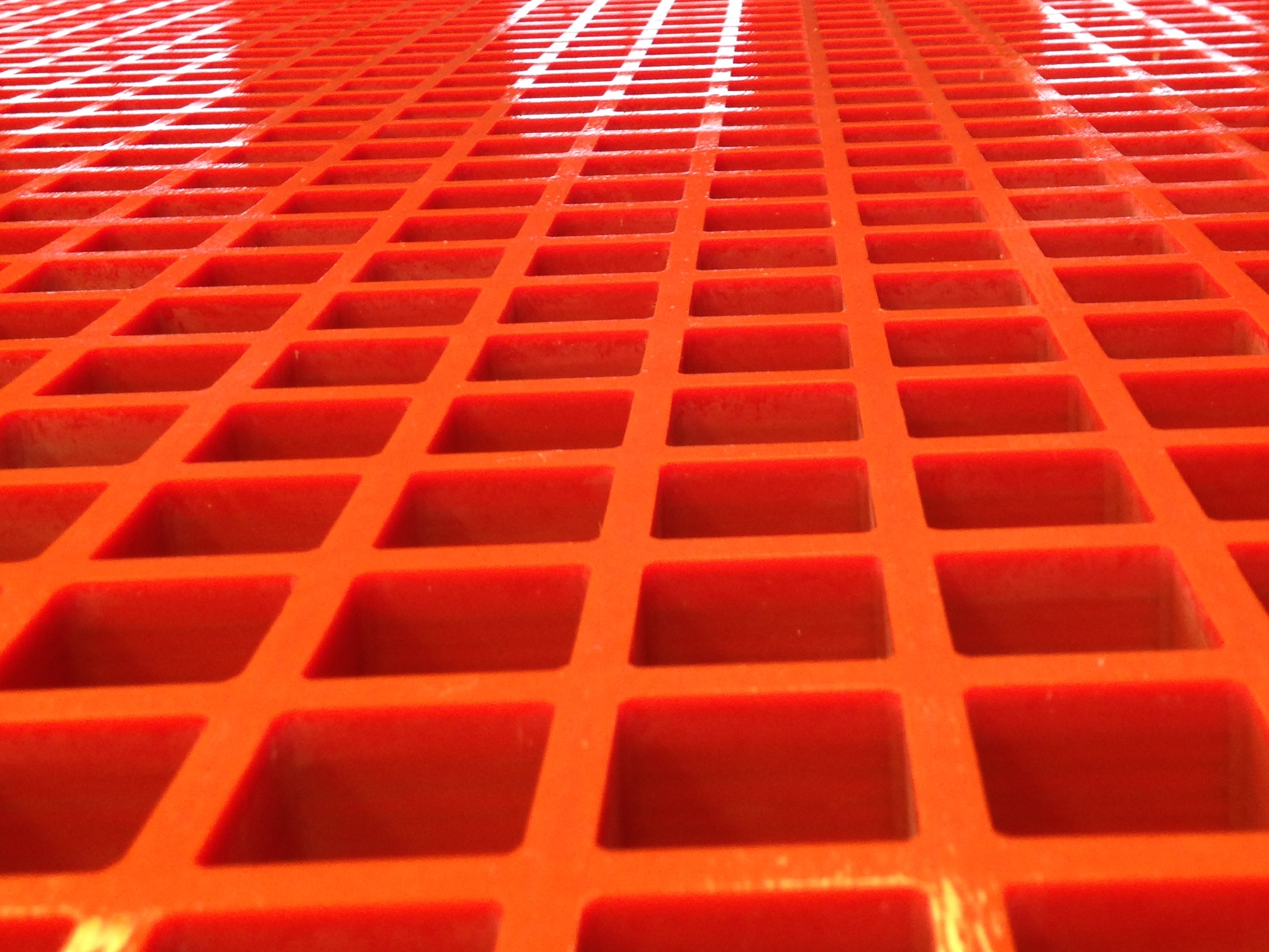

Smooth Surface
Easy to clean and maintain, ideal for food processing and pharmaceutical facilities. Smooth operation for wheeled equipment.

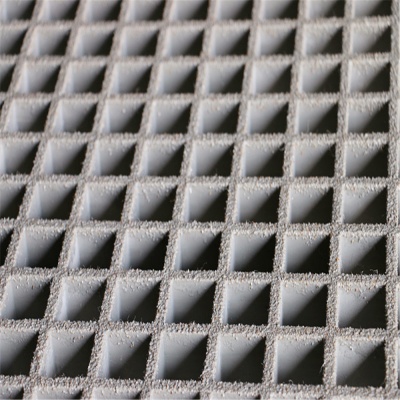

Gritted Surface
Enhanced safety with textured grip surface for high-traffic areas. Superior slip resistance in industrial environments and platforms.
Gritted Solid Top
Solid top with gritted texture for complete coverage and slip resistance. Prevents debris fall-through while maintaining excellent traction.

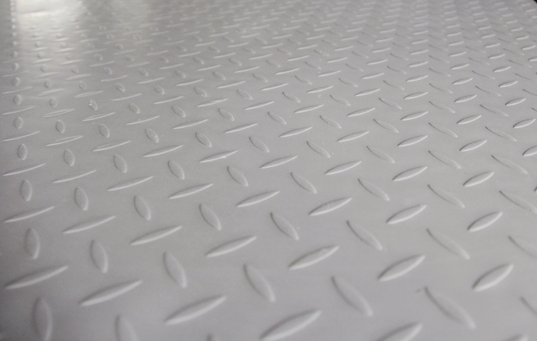

Pattern Cover Top
Decorative patterned surface combining aesthetics with functionality. Ideal for architectural applications where visual appeal matters.
Mirror Cover Top
Reflective surface for enhanced visibility and light distribution. Perfect for underground facilities and areas requiring improved illumination.
Browse WEENOOR MOLDED GRATING SIZE
Explore our comprehensive range of molded FRP grating solutions

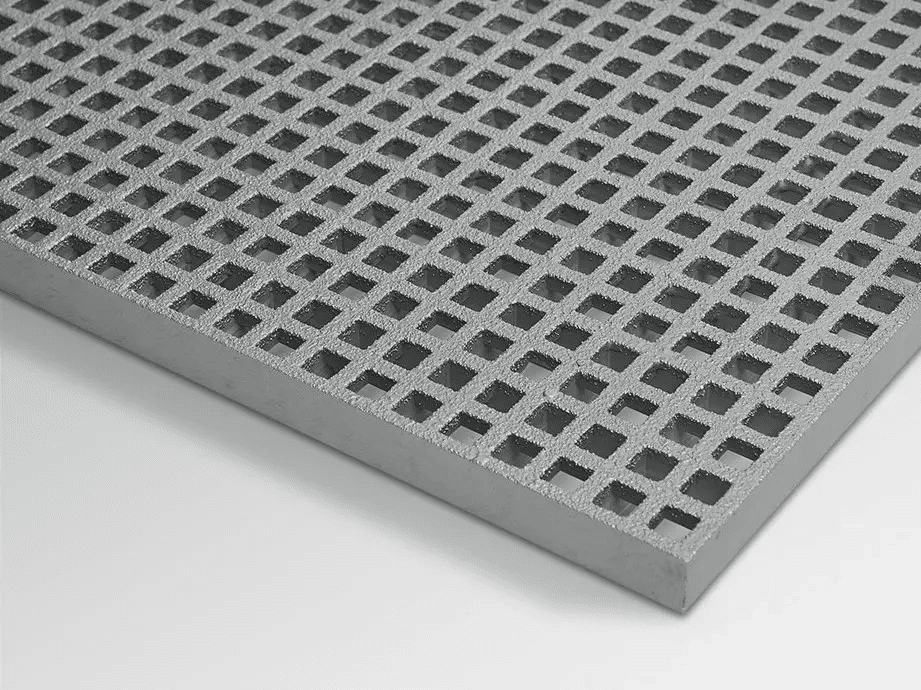

Mesh Size:38×38mm H:13mm
WxL:1220x3660mm
Mesh Size:38×38mm H:25mm
WxL:1220x3660mm
Mesh Size:38×38mm H:30mm
WxL:1220x3660mm
Mesh Size:38×38mm H:38mm
WxL:1220x3660mm
Mesh Size:38×38mm H:50mm
WxL:1220x3660mm
Mesh Size:40×40mm H:25mm
WxL:1007x3007mm

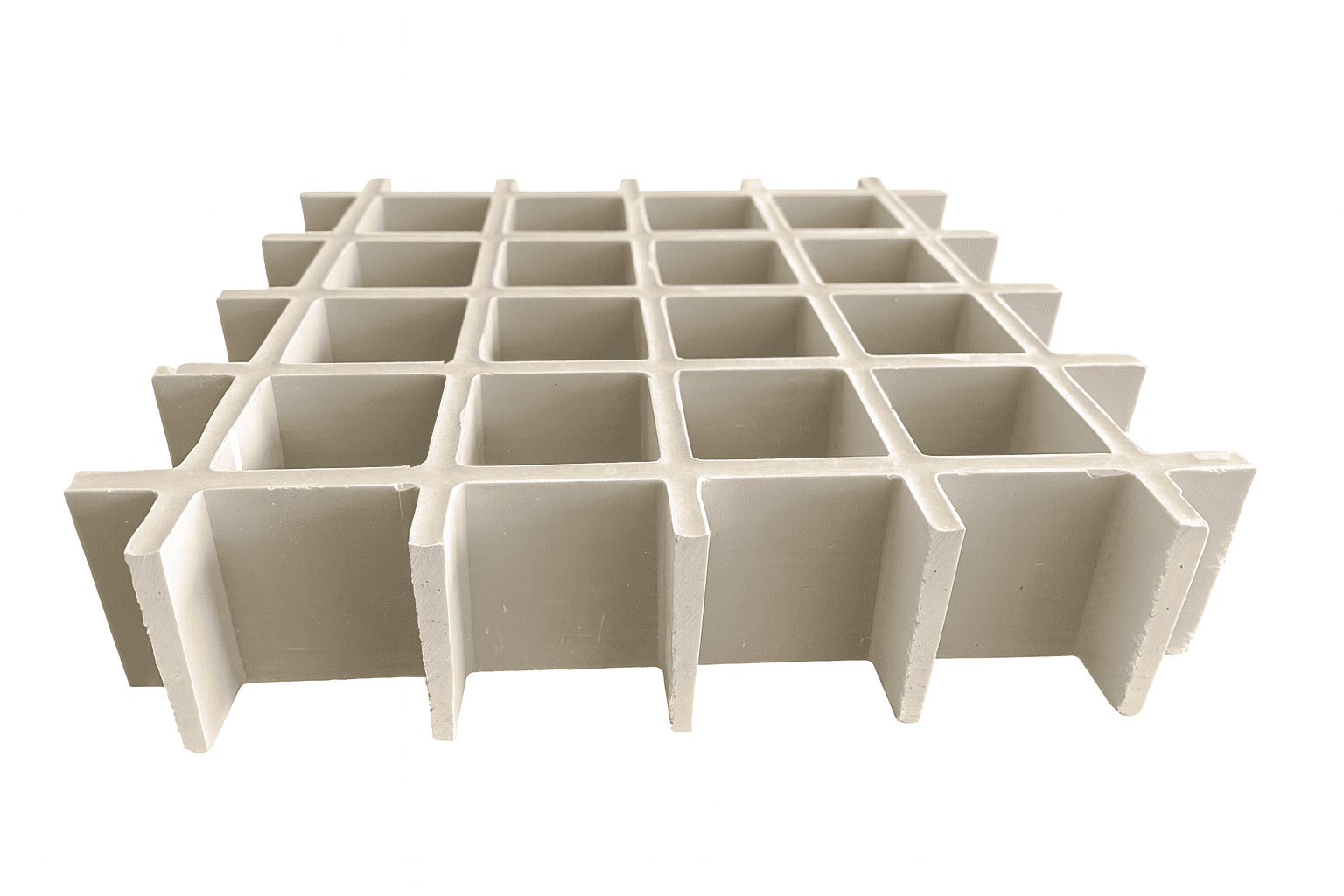

Mesh Size:50×50mm H:50mm
WxL:1524x4000mm

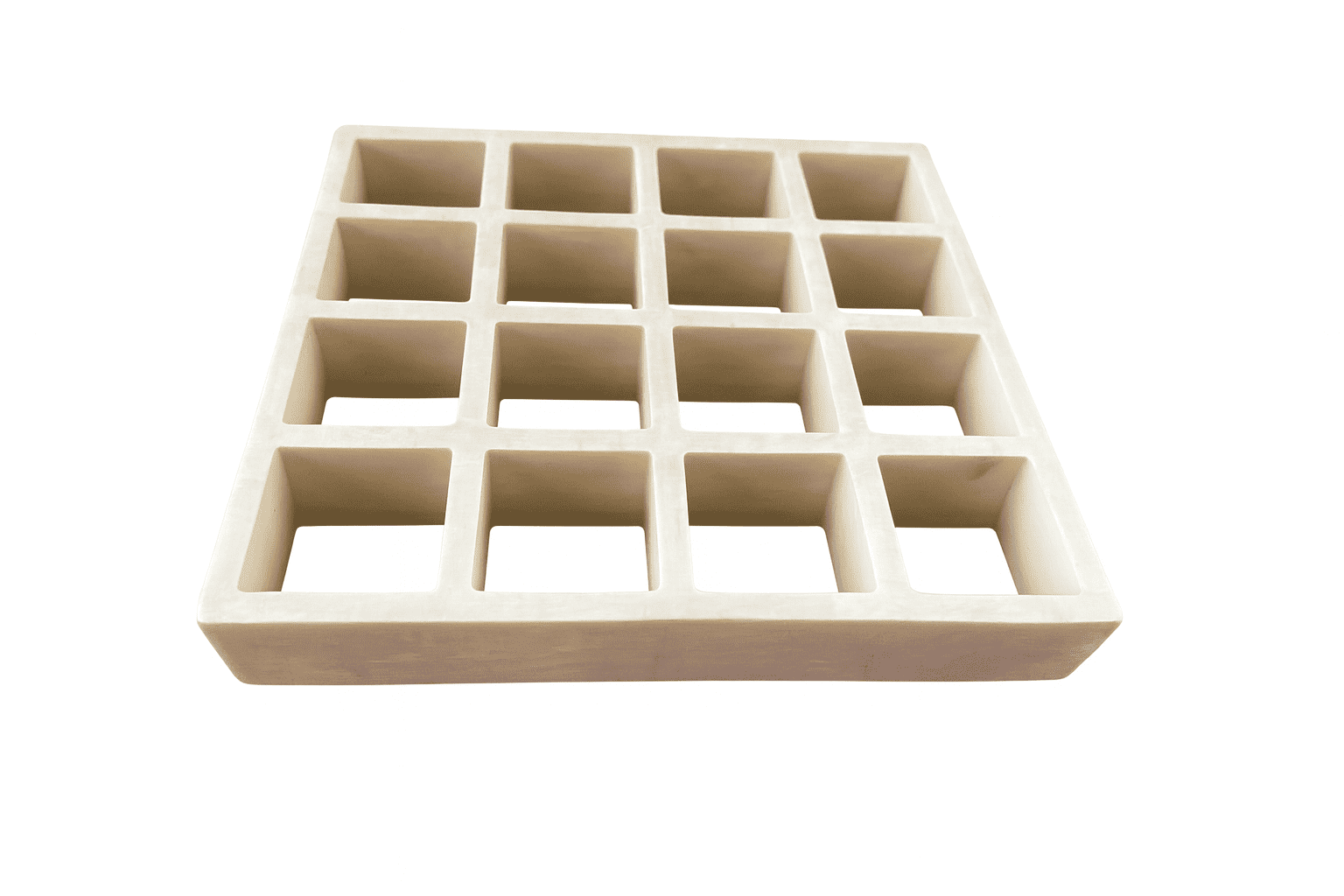

Mesh Size:83×83mm H:40mm
WxL:1007x3007mm

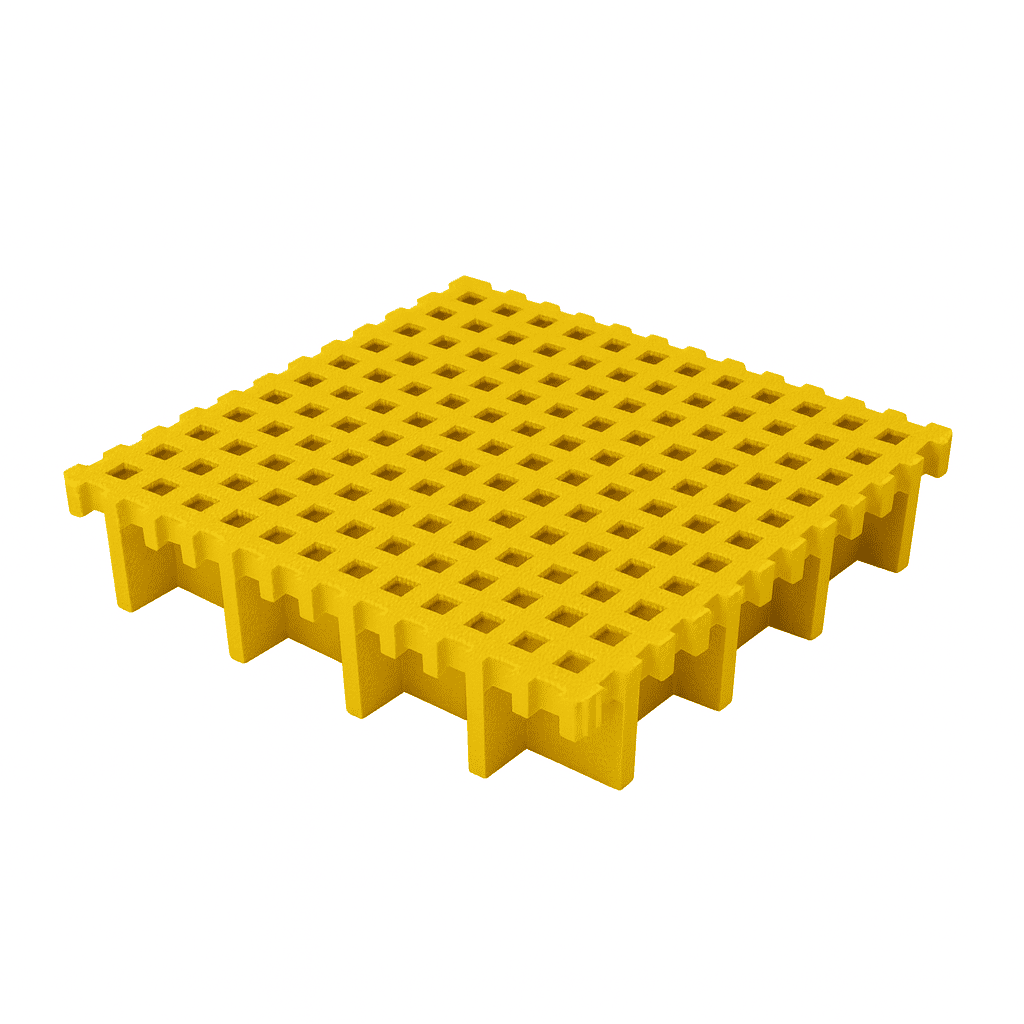

Mesh Size:40x40(13x13)mm H:30mm
WxL:1007x3007mm
Mesh Size:40x40(13x13)mm H:40mm
WxL:1007x3007mm
Mesh Size:38x38(19x19)mm H:30mm
WxL:1220x3660mm
Mesh Size:38x38(19x19)mm H:38mm
WxL:1220x3660mm
Mesh Size:40×40(20x20)mm H:40mm
WxL:1007x3007mm

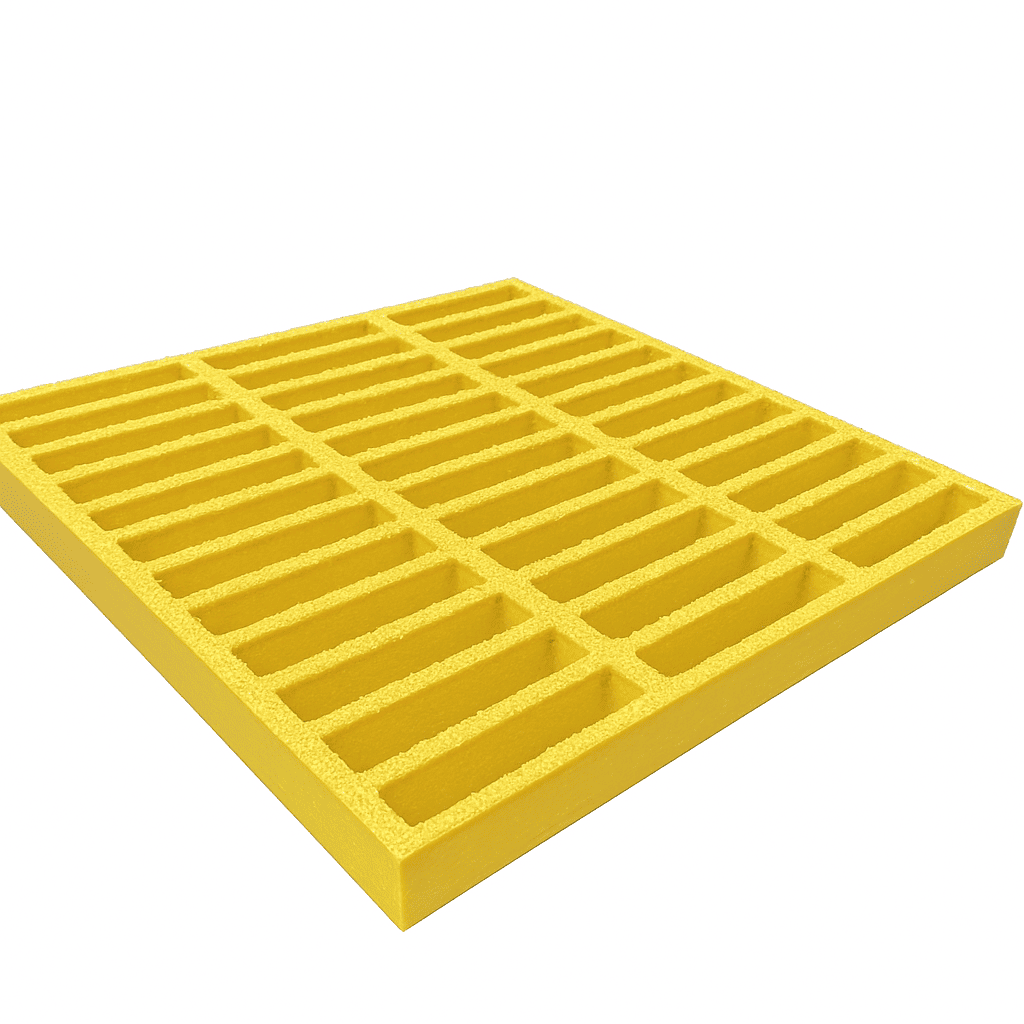

Mesh Size:25×150mm H:25mm
WxL:1220x3660mm
Mesh Size:38×152mm H:38mm
WxL:1220x3660mm
Need Custom Dimensions?
We manufacture custom FRP gratings to your exact specifications. Contact us for technical consultation and free samples.
Common Applications
Versatile solutions for industrial, commercial, and infrastructure projects

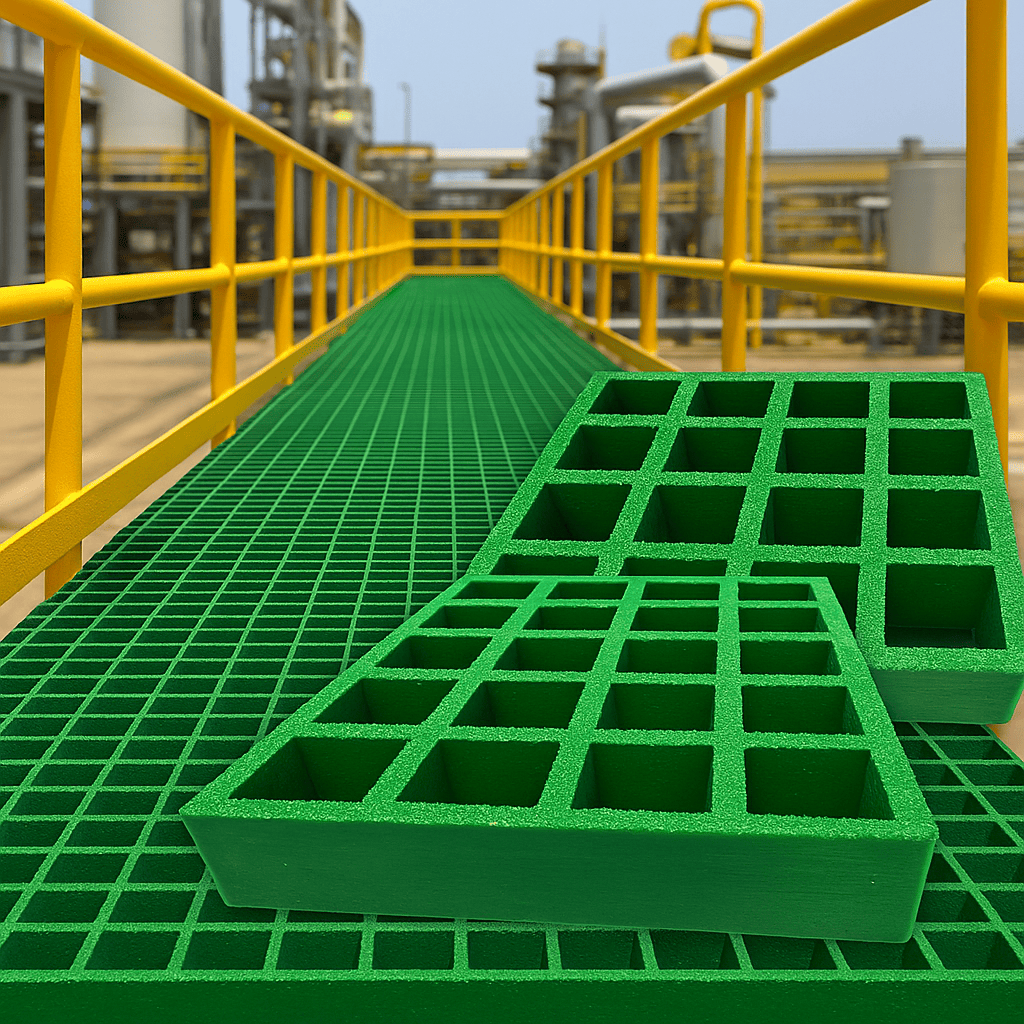

Industrial Platforms
Walkways, work platforms, and mezzanines in manufacturing facilities
Chemical Plants
Corrosion-resistant flooring for harsh chemical environments
Water Treatment
Drainage systems and covers for water treatment facilities
Marine Structures
Offshore platforms, docks, and marine infrastructure
Oil & Gas
Fire-safe gratings for refineries and petrochemical facilities
Car Wash Floor Grating
Slip-resistant and drainage-optimized grating for car wash bay flooring applications
