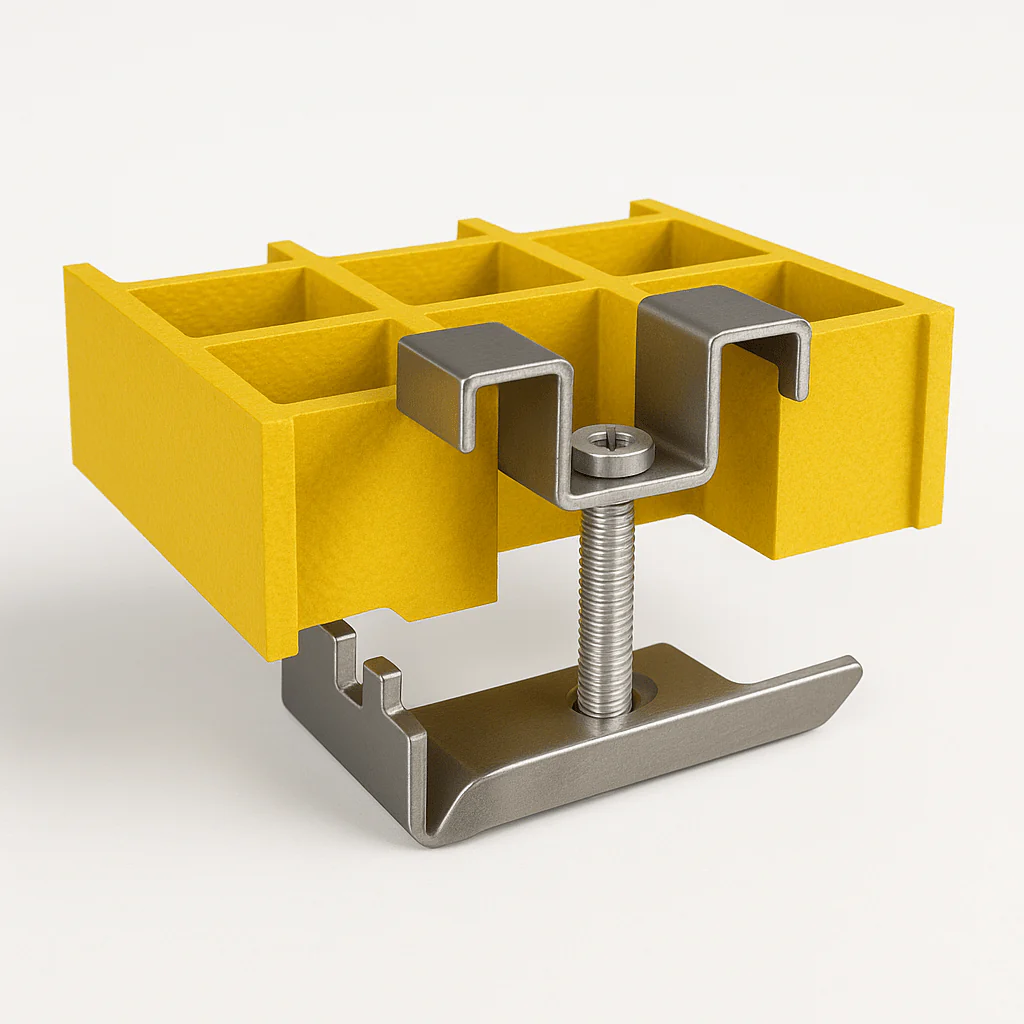

FRP Grating Clips & Fasteners
Professional-grade fastening solutions for molded and pultruded FRP gratings. Normally, the maximum distance between clips should be no more than 1220mm for optimal security.
Professional Fastening Solutions
All metal clips manufactured from SS316 or SS304 with more than 1.5mm thickness for superior corrosion resistance and durability.

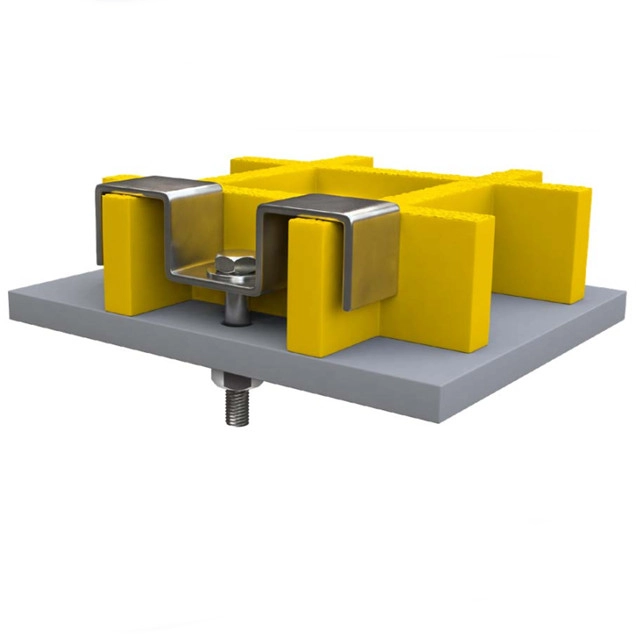

M Clip (Saddle Clip)
Versatile saddle-style clips designed to secure both molded and pultruded grating to support beams with reliable hold strength.

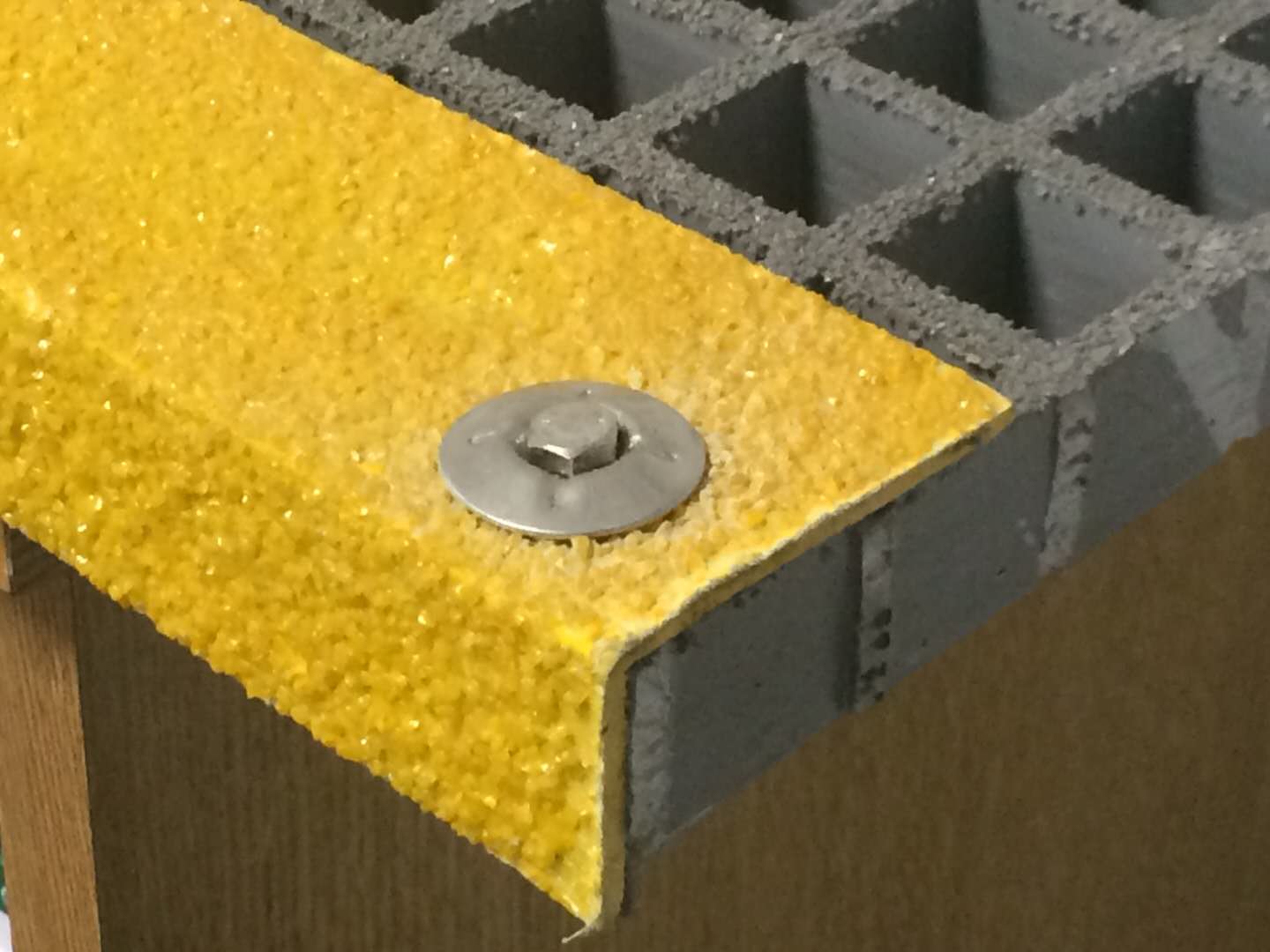

W Clip (Washer Clip)
This fastener secures plates and covered FRP gratings, using a recessed W-clip that keeps the bolt flush and ADA-compliant, with bolt length matching the panel height.

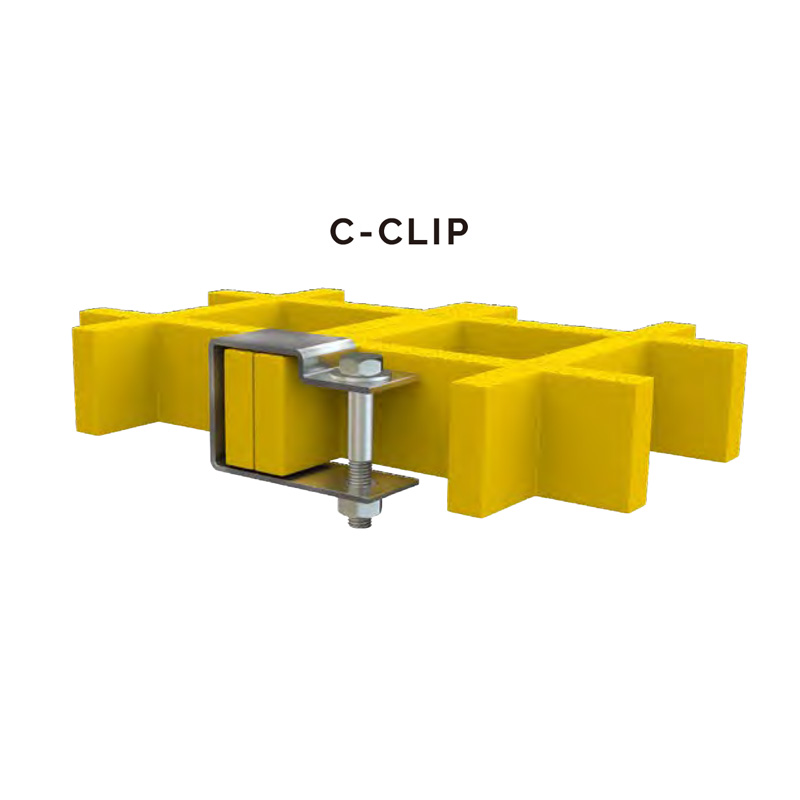

C-type clips
This end panel clip ties two FRP grating panels together to prevent uneven deflection at unsupported joints.
Specialized Fastening Solutions
L Clip (End Panel)
Designed for light-duty use, this clip secures a single FRP grating load bar to its supporting structure.
G Clips
Attach grating to structural steel or aluminum beams. No drilling required.
J Bolts
Heavy-duty bolts for securing grating to support beams with maximum strength.
T Clips
Specialized fasteners designed for securing pultruded grating to support beams.
Installation Guidelines
Proper clip placement ensures optimal grating performance and safety. Follow these spacing recommendations for different panel sizes.
2'-0" Panel Installation
3'-0" to 4'-0" Panel Installation
5'-0" Panel Installation
Need Custom Fastening Solutions?
Our engineering team provides technical consultation, custom clip design, and complete fastening packages for your FRP grating projects.
